Q: A fillet weld is to be applied to the straight edge of a 14 mm thick plate. As per IS 800:2007, the size of weld should not exceed
  • A. 12.5 mm
  • B. 13 mm
  • C. 12 mm
  • D. 14 mm

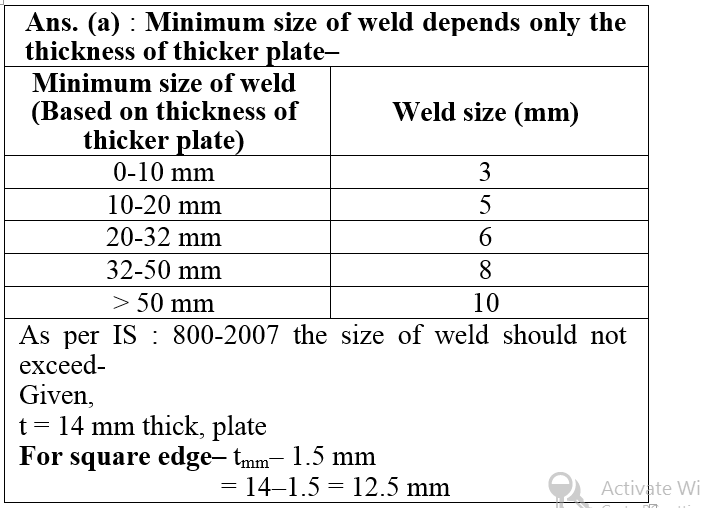

Correct Answer: Option A -
answer image

Explanations:

explanation image
